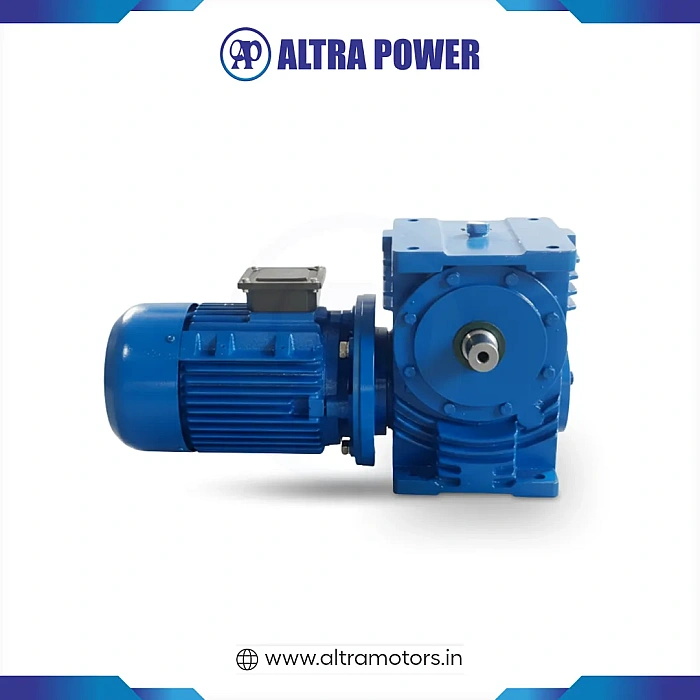

Worm Gear Motors Manufacturers Since
1993
At Altra Power Electrical industries, we are proud to be one of the reliable Worm Gear Motor Manufacturers in India providing high performance solutions that are in line with the changing needs of the modern industries. Our advanced worm gear motor high torque systems are built to deliver high power transmission, smooth running, and extended durability even under the most demanding conditions.
The selection of appropriate gear motors is necessary in an industry where precision, load management and controlled movement are the issue of concern. One of the special features of worm gear motors is that they provide a high level of torque with low speeds of operation and have a compact and efficient design. These motors can be used in heavy machines, conveyor belt, and automated production lines to give reliability and efficiency in order to have a smooth operation.
Top Worm Gear Motor Suppliers in India
Right Worm Gear Motor Suppliers in India is crucial to get high performance worm gear motors for long term performance, and efficiency. Altra Power Electrical industries are known to be one of the reliable Suppliers who provide an extensive range of solutions tailored to diverse industrial requirements.
As the best suppliers, we serve industries such as material handling, packaging, automation, and heavy machinery. We also cater to the need of customized designs, such as various power ratings, gear ratios, mounting and tailored solutions to fit certain applications. Given that we have a customer satisfaction and delivery commitment, we are an excellent choice of business in search of reliable worm gear motor solutions in India.
Understanding Worm Gear Motors – A Simple Yet Powerful Mechanism
A worm gear motor is an electromechanical device which combines an electric motor and a worm reduction gearbox. Its main working principle is a worm (a screw-like shaft) which rotates against a worm wheel (gear) and lets the motion be conveyed at right angles.
This special design allows the reduction of speed significantly with the same time generating higher torque output. Unlike the conventional gear systems, worm gear motors have a high gear reduction ratio in a single stage, hence they are very efficient to use in applications that require controlled movement and high load handling.
The mechanism is also easy, which also makes it reliable. With fewer moving components and a strong build, the worm gear motors can provide a consistent performance in a long period with little maintenance.
How Worm Gear Motors Work – Precision Through Engineering
The worm gear motor working principle depends on the contact between the worm shaft and the worm wheel. The helical threads are made to pass through the teeth of the worm wheel as the motor turns the worm shaft and as a result, the worm wheel turns.
This interaction produces several key outcomes:
- Very low speed, and therefore suitable in slow-motion applications
- This increases torque thereby making the motor be able to handle heavy loads.
- An abrupt shift of direction of motion usually at 90 degrees.
The sliding contact between the wheel and the worm is one of the most crucial things in this mechanism. Although this helps to ensure smooth and silent operation, it also helps in the self-locking aspect of the worm gear motors.
Key Features That Make Worm Gear Motors Stand Out
The use of worm gear motors is widely preferred in industrial application in terms of design, and performance. At Altra Power Electrical Industries, our motors are built with precision engineering to deliver maximum efficiency and reliability.
- High Torque Output: Our worm gear motor high torque is designed to handle heavy loads with ease. This makes them suitable in the industries which need high but regulated movement.
- Compact and Space-Saving Design: The right-angle design is easily installed in tight spaces making it suitable for machinery where space is restricted.
- Smooth and Quiet Operation: These motors have very low noise and vibration and therefore enhance effectiveness of the entire system because of the sliding process between the worm and the gear.
- Self-Locking Capability: The design does not allow reverse movement which makes it safe in use in lifts and inclined conveyors.
- Durable Construction: Our worm gear motors are made of high-quality materials, including cast iron and aluminum, to endure the severe working environment in industries.
Best Worm Gear Motor Dealers in India
Altra Power Electrical Industries is one of the Best Worm Gear Motor Dealers in India which has a wide variety of industrial grade worm gear motors that are built to serve, to work with efficiency and high level of service. The wide network of our dealerships provides us with easy access to products in large industrial areas.
We know that industries have their own specifications with regard to the operations, that is why we have a wide variety of models that can be used in both light-duty and heavy-duty tasks. Our staff will offer quality advice on choosing the right product whether it is a standard motor or a tailored one.
We do not only focus on the provision of products but also on long term relationships with our customers. We have remained a dealer of choice under responsive support, competitive pricing and a firm belief on quality that has made us a preferred dealer to industries that have required reliable solutions to their worm gear motor requirements.
Advantages of Worm Gear Motors in Industrial Applications
- Efficient Power Transmission: The worm gear motors offer very good multiplication of torque; hence, industries can ensure high performance without enlarging the size of the motors.
- Enhanced Safety with Self-Locking Mechanism: Self-locking feature is used in applications that require lifting or positioning, to avoid unintended movement and hence accidents.
- Versatility Across Industries: Worm gear motors have a broad range of applications, as they can be modified to a light-duty machine or a heavy industrial machine.
- Reduced Maintenance Requirements: These motors have fewer moving components and can withstand tough construction thus do not need much maintenance as compared to other gear systems.
Industrial Applications of Worm Gear Motors
Worm gear motors are necessary in most industries because of their adaptability and their performance potential.
- Material Handling and Conveyors: They find applications in the conveyor belt systems of transporting heavy materials in an efficient and safe way.
- Packaging Machinery: They are also suited to the packaging and the bottling processes because they can run at controlled speeds.
- Lifting and Hoisting Equipment: The self-locking is a safety device that guarantees stability in the lifting applications.
- Textile and Printing Industries: Their moving is smooth and accurate, which makes them suitable in delicate processes.
- Automation and Robotics: Worm gear motors are used in the modern automation systems because they are more accurate and consistent to high-performance operations.
Worm Gear Motor vs Other Gear Motors – Making the Right Choice
When choosing a gear motor, it is important to have knowledge of the differences between the types that are available.
- Compared to Helical Gear Motors: Worm gear motors are much smaller in size and provide higher reduction ratios, thus they are suited in application with high torque where low speed is needed.
- Compared to Spur Gear Motors: They offer a smooth and silent operation thus they are more appropriate in noise sensitive settings.
How to Select the Right Worm Gear Motor
Although planetary motors are highly efficient, worm gear motors are highly applicable in the application where self-locking and simplicity is needed.
- Understand Load Requirements: The appropriate worm gear motor is the one that guarantees the best performance and durability.
- Define Speed Requirements: Calculate the required torque depending on the weight and the nature of load.
- Define Speed Requirements: Choose a motor that has the right RPM to suit your operation requirements.
- Consider Duty Cycle: To ensure continuous processes, select motors that are used in heavy duty.
- Evaluate Environmental Conditions: Make sure that the motor can withstand temperature, dust and moisture conditions.
- Choose the Right Mounting Type: The mounting is done properly to have easy installation and effective performance.
Detailed Technical Specifications for Industrial Worm Gear Motors
|
Parameter
|
Specification / Details
|
|
Product Type
|
Worm Gear Motor
|
|
Gearbox Type
|
Worm / Helical Worm
|
|
Motor Type
|
AC Induction Motor
|
|
Motor Phase
|
Single Phase / Three Phase
|
|
Power Range
|
0.12 kW / 0.18 kW / 0.25 kW / 0.37 kW / 0.55 kW / 0.75 kW / 1.1 kW
|
|
Voltage Range
|
220V / 415V (Customizable as per requirement)
|
|
Frequency
|
50 Hz
|
|
Rated Speed (Output)
|
10 / 15 / 20 / 30 / 40 / 60 / 90 RPM
|
|
Gear Reduction Ratio
|
Approx. 10:1 to 100:1+ (Depending on application)
|
|
Output Torque
|
High Torque Output (Application Specific)
|
|
Efficiency
|
50% – 90% (Varies with load and gear ratio)
|
|
Direction of Rotation
|
Bi-directional
|
|
Duty Cycle
|
S1 (Continuous Duty)
|
|
Insulation Class
|
Class B / Class F
|
|
Protection Class
|
IP55 (Dust & Water Protection)
|
|
Cooling Method
|
TEFC (Totally Enclosed Fan Cooled)
|
|
Mounting Type
|
Foot / Flange / Shaft Mount / Foot & Flange
|
|
Mounting Orientation
|
Horizontal / Vertical
|
|
Housing Material
|
Cast Iron / Aluminum
|
|
Gear Material
|
Hardened Steel Worm / Phosphor Bronze Worm Wheel
|
|
Shaft Material
|
High Grade Alloy Steel
|
|
Bearing Type
|
Anti-Friction Bearings
|
|
Lubrication System
|
Oil / Grease Lubricated
|
|
Sealing
|
Oil Seal with Dust Protection
|
|
Center Distance
|
30 mm / 40 mm / 50 mm / 63 mm / 75 mm / 90 mm / 110 mm
|
|
Shaft Diameter
|
As per Design / Application Requirement
|
|
Starting Method
|
Direct-On-Line (DOL) / Star-Delta
|
|
Efficiency Class
|
IE2 / IE3 (Optional)
|
|
Temperature Rise
|
As per IS Standards
|
|
Standards Compliance
|
IS / IEC Standards
|
|
Application Areas
|
Conveyors, Packaging Machines, Material Handling, Lifting Equipment, Automation Systems
|
|
Customization
|
Available (Power, Speed, Shaft, Mounting, Gear Ratio)
|
Trusted Worm Gear Motor Exporters in India
Altra Power Electrical Industries stands as a trusted brand name as the best Worm Gear Motor Exporters in India and has provided quality products to the international market with emphasis on their performance and durability.
We have advanced and high quality materials to make our worm gear motors and these are compliant with the international quality standards. Our products are designed to work under various environmental conditions and can be used in the industries everywhere in the world such as manufacturing, automation and material handling.
We have efficient logistics, safe packaging, and timely financial and delivery which guarantees our international customers a smooth export process. We have the expertise to offer tailored solutions and also reliable quality of our products and this has made us a reliable partner to any business that wishes to identify the worm gear motors in India.
Why Choose Altra Power Electrical Industries?
Altra Power Electrical Industries is a company one can rely on, regarding quality and high performance worm gear motors.
With the help of high-technology, industry experience, and near-customer solutions, we provide products of the best quality standards.
Our strengths include:
- Long-term experience in the production of industrial motors.
- Good materials and accuracy of engineering.
- Bespoke solutions to meet your needs.
- Low competitive prices without quality compromise.
- Good customer service and after sales service.
We are dedicated to offer solutions, which will improve productivity and efficiency in industries.
Worm Gears - Right Choice for High Torque Applications!
A worm gear motor is a solution that is vital in industries where there is a need to have precise, reliable and high torque performance. These motors have been popular in a variety of industries due to their small size, easy operation, and safety.
At Altra Power Electrical Industries, we have a commitment to provide high-quality worm gear motor solutions of high torque to satisfy the needs of our customers in particular. No matter what type of models you need or tailor-made solutions, our team is ready to help you with the ideal products and professional advice.
Contact us today to run your operations efficiently, reliably and with performance.
