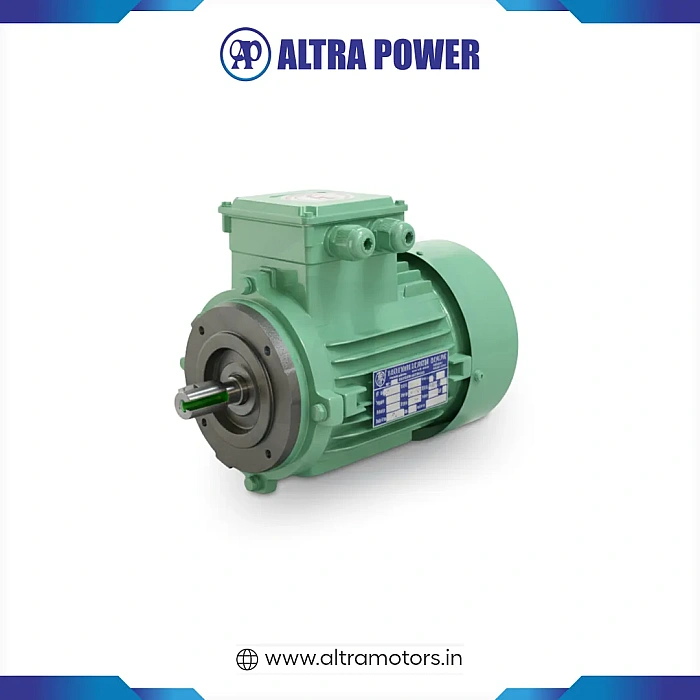

Face Mounted Motor Manufacturer in India

Face Mounted Motor Manufacturers Since 1993

When it comes to industrial applications, the choice of motor and the method of mounting are critical for long term performance, maintenance, and ongoing reliability of the equipment. With years of experience as a Top Face Mounted Motors Manufacturers in India, Altra Power Electrical Industries is pleased to provide a comprehensive guide on face mounted motors, covering what they are, how they operate, where they’re used, Why they matter and how to select the right one for your application. It doesn’t matter if you’re an engineer specifying equipment, a maintenance professional looking for clarity, or an industrial buyer comparing prices and options, then this will help you to select the right one for your different requirements.

Top Face Mounted Motor Suppliers in India

Altra Power Electrical industries are excellent Face Mounted Motor Suppliers in India and they supply motors that are reliable, exceeding the standards and expectations of the industry. In our face mounted motors we have the types of C-Face (B14), D-Flange (B5), and dual-mount (B35) and find their way in pumps, gear reducers, blowers, and original equipment manufacturing (OEM) equipment.

Our motors are precise, have easy installation and are rough hence suitable in the industrial use. We have a wide network of distributors in India and hence face mounted motors of high quality are readily available. Small, fractional kW single-phase motors up to medium, three-phase motors, Altra Power Electrical Industries offers you all the solutions that you need.

Understanding Face Mounted Motors: What Are They?

A face mounted motor is an electric motor that attaches to the driven equipment by the drive end of the motor with a machined faceplate mounting that uses threaded or clearance holes rather than mounting feet on the bottom of the motor. This type of mounting style is sometimes called direct coupling because the motor shaft can be directly connected to the driven equipment (such as pump, gearbox or blower) without the need for adaptors. This provides for a tight installation, compact size and improved alignment.

Unlike a motor with its own base (foot mounted motor), which may need shims and brackets to align, the face mounted motor allows a direct bolt-on connection to the equipment it drives. This helps ensure better reliability and ease of installation, particularly in tight spaces.

Technical Specifications That Matter

For ease of design, face mounted motors are often rated by the following technical specifications:

This information serves as a guide for specifying the right face mounted motor for your application, from small OEM to medium power industrial drives.

Why Face Mounted Motors are Valuable in Industry

Face mounted motors are highly valued in a range of industries due to following reasons:

• Accurate Shaft Alignment: The machined face is conducive to precise alignment between the motor and driven equipment. If misaligned, there are problems with premature bearing wear, vibration and wasted energy. Direct coupling eliminates these problems.
• Tight Installations: Face mounted motors eliminate the need for additional bases, brackets or couplings so the installation footprint and equipment footprint is reduced. This is especially important in modular process systems and tight production lines.
• Easy to Service: The motor is directly mounted to the equipment it drives and therefore it is easier to remove and re-install the motor than with belt driven or even intermediate gear driven equipment.
• Lower Vibration: Face mounting, when installed correctly, can increase torsional stiffness and reduce vibration, improving bearing and product life.

These benefits make face mount motors a viable option where accuracy, space and reliability are critical.

Face Mounting Types: C‑Face, D‑Flange, and More

Knowing the various face mount types can assist in selecting the appropriate type for your application. These terms can correspond to standards such as NEMA (North America) and IEC (international).

1. C Face (also known as B14 face mount)

A C Face motors have a flat, circular mount on the drive end with bolt holes in a specified pattern. The smaller diameter face plate permits the equipment to be bolted to the motor for a smaller footprint and secure connection. It's the most common of the face mounts in industrial equipment that requires vertical or horizontal pump mounting, gearboxes and blowers.

2. D Flange (also known as B5 flange)

D Flange motors are bigger face mounts that have unthreaded holes through which the bolts are passed through the flange to a matching surface on the equipment. The flange may be larger than the motor diameter and may be applied to heavier weight or larger equipment in which size and bolt shear strength are of concern.

3. Combination Mounts (B35 / B34)

There are some motors that are provided with flange and foot mounting (face mounted) as a combination that is a perfect choice when using an existing item or a combination of several setups.

Being aware of such types should assist in making sure that it fits into your equipment mechanically and you need not worry about using costly adapters, which can interfere with alignment and performance.

Face Mounted vs Foot Mounted Motors: A Clear Comparison

Foot mounted and face mounted motors are different in the manner of their mounting, alignment, space consumption and common uses. Face mounted motors are simply clamped to the face of a machine, and only a few fasteners are needed, and the machined faceplate guarantees accurate positioning because the machine does not require further adjustment. This renders them particularly appropriate with small designs where area is constrained and precise connecting is vital. Foot mounted motors on the other hand are mounted on a base or foundation and in most cases require proper alignment during the installation process, this may involve the use of shims to attain the desired position. They are more massive and might consist of other parts like belts and sheaves. Face mounted and foot mounted motors are typically applied in pumps, gearboxes, vertical installations, and direct-coupled equipment, and direct-coupled motors, respectively, which is why they are well suited to general-purpose industrial applications.

Where Face Mounted Motors Shine: Real Industrial Applications

Face mounted motors are prevalent in industries that require strong couplings and take up little space. Some common use cases include:

1. Pumping Systems

Closed coupled centrifugal pumps are easy to align and install. Closed coupled pump applications use a face mounted motor to drive the pump impeller directly.

2. Gears Reduces and Mechanical Drives.

Face mounted motors are also frequently used together with gearboxes which are fixed directly to the motor flange to provide a small unit in applications where a stepped down motor speed is needed to provide higher torque.

3. Blowers and Fans

FMMs offer a more clean, smaller footprint installation in HVAC, dust collection and process applications, a smaller number of parts and more rigid construction, and can be permitted higher duty cycles.

4. Machine Tools and Assembly Fixtures

The machine tools can have a need for high precision and accuracy motor drives having torque control. Face mounted motors are highly applicable to this requirement with low offsets.

5. OEM Machinery

Face mounted motors are popular with original equipment manufacturers (OEMs) because they take up less space in control enclosures, and reduce the number of components required for integration.

Face mounted motors allow these applications to benefit from their inherent strengths - direct coupling, compactness, and ruggedness.

Installation Best Practices and Practical Tips

Face mounted motors have long life, increased reliability and are easy to maintain when properly installed. These factors should be considered when mounting a face mounted motor:

Where face mounted motors are involved, care should be taken to ensure that the mounting standards are interchangeable by checking that the type of motor face B14 or B5 in face mounted motors is compatible with the mounting pattern of the equipment it is driving either NEMA or IEC standards as this allows it to be fitted without causing misalignment or poor fitting. Although face mounted motors inherently aid in alignment since they have machined faces, nonetheless, a final shaft alignment check is necessary prior to tightening in order to ensure that the shafts are perfectly coaxial and perpendicular and laser alignment tools provide a high degree of accuracy to this procedure.

Also, the vibration isolation and environmental protection should not be neglected since they can be ensured by choosing a suitable motor enclosure, i.e., Totally Enclosed Fan Cooled (TEFC) or an IP55-rated model to provide sufficient protection against dust, moisture, and other environment-specific factors.

How to Choose the Right Face Mounted Motor

The best face mounted motor choice is based on application specific factors:

• Type of Load and Torque Needed: Select power rating and pole count to meet torque and speed demands of the driven equipment.
• Face Style and Bolt Pattern: Match the face mounted motor to the mounting standard of the driven equipment.
• Ambient Environment: Select motor enclosures and insulation to operate with environmental factors (dust, moisture, temperature).
• Physical Space: Face mounted motors are perfect for space saving applications, however always check for access when servicing or replacing parts.

Before purchasing consult with a trusted manufacturer to upgrade your industrial operations and get high performance solutions.

Why Altra Power Electrical Industries Leads in Face Mounted Motor Solutions

Altra Power Electrical Industries face mounted motors are designed to meet the rigours of the industrial environment. Our standard designs and engineering techniques mean our motors are:

• Long lasting and reliable
• Machined for perfect fit and alignment
• In a range of power ratings and styles
• Rugged and thoroughly tested

We follow strict manufacturing processes and quality control measures ensuring reliability in harsh environments and perform consistently.

Face Mounted Motors Deliver Precision and Efficiency!

Face mounted motors provide a unique combination of direct coupled, small footprint, flexibility and accuracy for industrial applications. They make an excellent choice for use in pumps, gear boxes, fans, OEM equipment and other high reliability efficiency-critical applications.

If you’re also looking for a reliable motor, it is important to have understanding of mounting pattern, specifications, and installation as well as maintenance consistency.

For more information on selecting, specifying and installing the appropriate face mounted motor for your industrial application, contact Altra Power Electrical Industries. Contact us for information and expert advice from our engineers.
