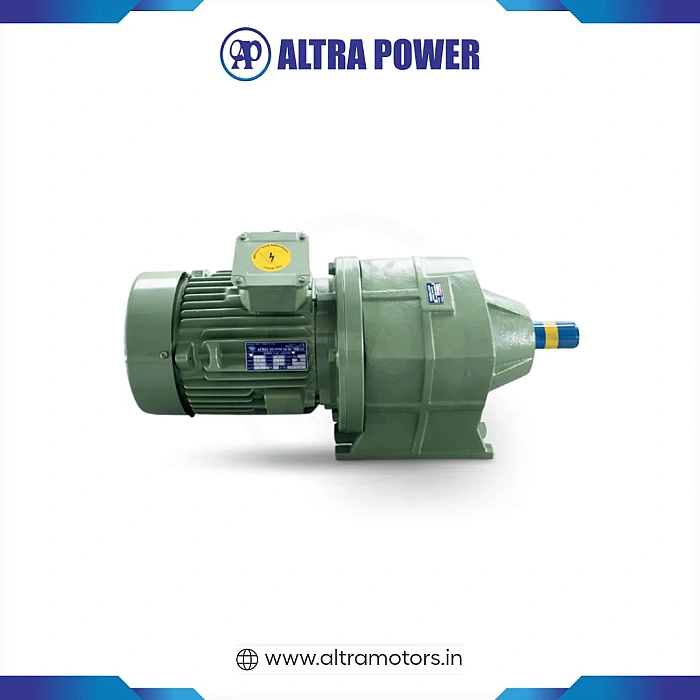

Bevel Helical Gear Motor Manufacturers Since
1993
In the modern competitive industrial world, companies need machinery that deliver stability, efficiency and extended service life. The gear motor system is one of the most important elements in achieving this. At Altra Power Electrical Industries, we are known as a reliable Bevel Helical Gear Motor Manufacturers in India, which also provides a highly developed system of solutions based on the requirements of the modern industry.
Our helical bevel gear motor range is manufactured to offer high levels of torque output, compact design, and high levels of energy efficiency. Our motors are constructed using high-quality engineering and sturdy materials, and can be used reliably even under the most challenging industrial conditions. We offer quality and highly competitive solutions to the Indian and international markets at performance standards equivalent to internationally acceptable systems such as SEW helical bevel geared motor.
Top Bevel Helical Gear Motor Suppliers in India
When it comes to reliable and high-performance power transmission solutions, Altra Power Electrical Industries is one of the Top Bevel Helical Gear Motor Suppliers in India. Our product line up comprises a variety of helical bevel gear motor products to suit the current needs of modern industries.
Having high torque output, energy efficiency and long life our gear motors are applicable to material handling, packaging, cement, mining and automation industries.
Why Choose Us as Your Supplier?
- Extensive selection and tailor made gear motors.
- Quality products that are under tight quality control.
- Large and small quantity orders at competitive prices.
- Fast delivery and logistics provision.
Our bevel helical gear motors have proven performance and reliability whether a small drive system is required or a heavy-duty solution is needed.
What is a Bevel Helical Gear Motor?
A bevel helical gear motor is a combination of two highly effective gear technologies, helical gears and bevel gears, into a single and small gear. The design enables power to be delivered efficiently at 90 degree angle and is therefore suitable where space or directional shift is necessary.
How It Works
- The helical gear stage provides a quiet and smooth transmission of power because the teeth are angled.
- The bevel gear stage reverses the direction of the shaft, usually 90 degrees.
- The combined motor rotates the gearbox leading to a regulated speed and increased torque.
This design combination has resulted in highly efficient, durable, and continuous industrial applications of the helical bevel gear motor.
Key Features & Advantages of Bevel Helical Gear Motors
The selection of the appropriate gear motor can make the operation much more efficient. Our gear motors have a variety of advantages which makes them suited to use as industrial gear motors.
1. High Torque Output
Bevel helical gear provides high torque even when speeding is low. This is why they are ideal in heavy-duty use like conveyors, cranes and material handling systems.
2. Compact Right-Angle Design
The motors are more efficient than conventional gear systems because of less frictional losses. This results in reduced energy usage and savings.
3. Compact Right-Angle Design
The 90 degree shaft configuration is fitted with limited spaces and is therefore very useful in smaller machineries and challenging layouts.
4. Smooth and Quiet Operation
Helical gears are used to provide high performance and noise reduction, as well as to enhance work conditions and machine operation.
5. Long Service Life
These motors are manufactured with high quality materials and using high precision machine and as a result, offer long performance while experiencing less wear and tear.
6. Low Maintenance Requirements
Effective lubrication and durable construction decreases maintenance and minimizes down time.
7. Modular Design Flexibility
The modular construction is also tailorable to various purposes as it can be mounted, configured to various shafts and gear ratios.
Best Bevel Helical Gear Motor Dealers in India
Altra Power Electrical industries is a Best Bevel Helical Gear Motor Dealers in India whose products have high quality and good technical support and customer care services. Our clients are a wide range of industries, and with standard solutions and tailor-made, we provide reliable services.
We are experienced dealers and we know how critical it is to deliver the right product at the right time. The design of our helical bevel gear motors is geared towards smooth operation, high efficiency, and long service life making them a favorite among industrial purchasers.
Technical Specifications of Bevel Helical Gear Motors
Our gear motors have an industrial use at Altra Power Electrical Industries, which are developed according to various industrial needs. The specifications are given in detail below:
|
Parameter
|
Specification
|
|
Product Type
|
Bevel Helical Gear Motor
|
|
Gearbox Type
|
Helical Inline / Helical Bevel / Helical Parallel
|
|
Gear Arrangement
|
Multi-stage Helical + Bevel Gear Combination
|
|
Orientation
|
Right Angle (90° Output Shaft)
|
|
Motor Type
|
AC Induction Motor
|
|
Motor Phase
|
Three Phase / Single Phase
|
|
Power Range
|
0.12 kW to 1.5 kW (Expandable as per requirement)
|
|
Voltage Range
|
380V / 400V / 415V / 440V AC
|
|
Frequency
|
50 Hz / 60 Hz
|
|
Speed Range (Output RPM)
|
10 RPM to 80 RPM
|
|
Gear Ratio
|
5:1 to 300:1 (Customizable)
|
|
Torque Output
|
Up to 5000 Nm (Depending on configuration)
|
|
Efficiency
|
Up to 94% – 96%
|
|
Mounting Type
|
Foot Mounted / Flange Mounted / Foot & Flange
|
|
Output Shaft Type
|
Solid Shaft / Hollow Shaft
|
|
Shaft Orientation
|
Horizontal / Vertical
|
|
Housing Material
|
High-Grade Cast Iron / Aluminum Alloy
|
|
Gear Material
|
Alloy Steel (Case Hardened & Ground)
|
|
Lubrication
|
Oil Lubricated (Splash / Forced Lubrication)
|
|
Sealing
|
Double Oil Seal for Leak Protection
|
|
Protection Class
|
IP55 / IP65
|
|
Insulation Class
|
Class F / Class B
|
|
Cooling Method
|
TEFC (Totally Enclosed Fan Cooled)
|
|
Ambient Temperature
|
-10°C to +50°C
|
|
Duty Cycle
|
S1 (Continuous Duty), S2, S3
|
|
Noise Level
|
Low Noise Operation (as per industrial standards)
|
|
Vibration Level
|
Minimal (Precision Balanced Components)
|
|
Bearing Type
|
Heavy Duty Anti-Friction Bearings
|
|
Standards Compliance
|
IEC / IS Standards
|
|
Customization
|
Available as per application requirements
|
Additional Engineering Features
- Housing made of cast iron or aluminum of high strength.
- Hollow shaft and solid shaft.
- Efficiency up to 94-96%
- Hard environment protection IP55 / IP65.
- Gears machined with high precision to achieve the best performance.
- Dual oil seal to promote longevity.
Industrial Applications of Bevel Helical Gear Motors
Helical bevel gear motors are versatile and can be used in numerous industries.
- Material Handling / Conveyor Systems: These type of motors are widely used in conveyor belts to speedily and efficiently transport materials on production lines.
- Packaging Industry: They provide precise speed control required in the operation of the packaging machines, which results in improved productivity and a consistent production.
- Cement & Mining Industry: Bevel helical gear motors are reliable and uniform in the conditions of harshness and heavy loads.
- Food & Beverage Processing: These motors are meant to meet the hygiene requirement and give convenient and safe use in food processing units.
- Cranes, Hoists and Lifting Equipment: These are very powerful equipment that make them applicable in the lifting and movement of the heavy materials.
- Mixers & Agitators: These are utilized by the chemical and processing industry to produce continuous torque output with the desired even mixing.
- Automation Industry: They help in the fast and precise labor of automated machines and textile machines.
Bevel Helical Gear Motor vs Other Gear Motors
Understanding of the differences between types of gear motors can aid in finding the correct solution.
Why Bevel Helical is preferred in comparison to Worm Gear Motor
- It is more efficient and consumes less energy.
- Less heat generation
- Capable of operating around the clock.
- Longer service life
Why Bevel Helical is best in comparison to Helical Gear Motor
- Provides 90 degree power transmission.
- Smaller and more compact.
- More appropriate to sophisticated machineries.
Bevel Helical Gear Motor Exporters in India
Altra Power Electrical Industries is also a well-known Bevel Helical Gear Motor Exporters in India, producing high standards of gears on time to the international markets. Our export quality helical bevel gear motors have been designed to perform excellently, to last longer, and are also energy efficient.
We know the needs of foreign markets and offer products of international quality standards. Our strong packaging, timely delivery and dedicated export support make us a preferred partner for business associates to foreign customers.
Why Choose Us as Your Export Partner?
- IEC compliant gears (international quality standards)
- Customized solutions for global applications
- Safe shipment and safe packaging.
- Timely delivery across international markets
- Export documentation and support.
Many industries globally utilize our motors in manufacturing, processing, handling these materials and automation.
How to Choose the Right Bevel Helical Gear Motor
It is essential to choose the right gear motor to improve the performance and life.
- Load and Torque Requirement: Examine the loading condition and the needed torque to determine the best choice of the motor.
- Speed Requirement: Select the necessary RPM range, depending on the applications.
- Mounting Type: Installation of foot-mounted, flange-mounted or combined.
- Environmental Conditions: Take into consideration contact with dust, water and temperature changes.
- Power Supply: Make sure that it works with voltage and phase.
- Duty Cycle: Know whether the application should be running constantly or intermittently.
Why Choose Altra Power Electrical Industries?
By selecting Altra Power Electrical Industries, you collaborate with a partner that practices quality and innovation.
- Experienced Manufacturer: Years of experience in the production of industrial motors and gear systems.
- Customized Solutions: We will design and produce gear motors that will meet your special requirements.
- Competitive Pricing: Reasonable prices and not cheaply made.
- Pan India Supply: Well-developed distribution network.
- Strict Quality Control: All their products are highly tested in terms of performance and durability.
- Technical Expertise: Our crew offers full assistance in picking, up to installation.
Get the Best Price on Bevel Helical Gear Motors!
Altra Power Electrical Industries is the best Bevel Helical Gears Motors Manufacturing Company in India providing high performance, long life and energy efficient gear motors to suit your industrial needs.
Contact us today to:
- Request a quote
- Get expert consultation
- Get solutions that are tailor made.
