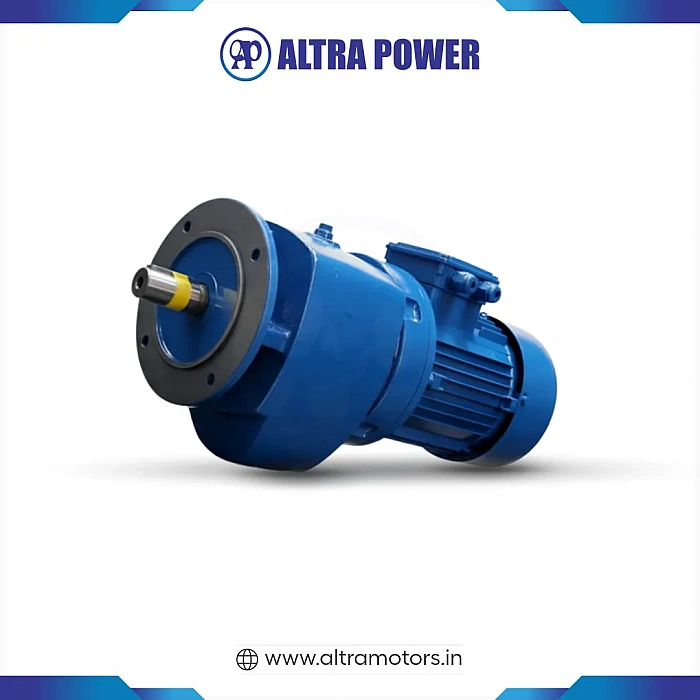

Helical Gearbox Manufacturers Since
1993
Efficiency, durability and precision is no longer a choice in the current competitive industrial environment, rather a necessity. Being one of the premier Helical Gearbox Manufacturers in India, Altra Power Electrical Industries also provides high-performance and long-term reliability power transmission solutions.
Helical gearbox is a very efficient (usually 90-98 percentage) mechanical mechanism that transmits power in a smooth and efficient manner using angled gear teeth. The design is unique and therefore can reduce noise, minimise vibration and load-handling capacity is greatly enhanced when compared to the conventional gear systems.
Inline helical gearboxes that are adapted to small installations to bevel helical gearbox systems, which are adapted to power transmission at right angles, are only some of the products that are designed to satisfy the demands of the modern industries.
Top Helical Gearbox Suppliers in India
Altra Power Electrical Industries is a Top Helical Gearbox Suppliers in India, guarantees a smooth availability of high-performance helical gearboxes in India. We know that timely delivery and the quality of industrial operations is very important, and this is the reason why our supply chain will be able to deliver to the urgent and bulk needs without delays. We have inline, parallel shaft, bevel helical, and helical-worm gearboxes in our product line and therefore it is simple for businesses to identify the appropriate solution to their applications.
Key Highlights:
- Extensive variety of gearbox designs of various industries.
- Quick and efficient shipment in India.
- Severe quality control of durability and performance.
- Custom solutions for cement, steel and other automation needs
- Strong inventory control to be available instantly.
We put reliability and efficiency in mind, so that all gearboxes delivered by us will ensure continuous industrial processes and durability.
What is a Helical Gearbox and Why Does It Matter?
A helical gearbox is a form of speed reducer which employs helical gears in which the teeth are cut at an angle (helix angle) as opposed to straight.
This design will have a number of benefits:
- Slow utilization of teeth decreases the impact of shocks.
- Several teeth in contact raise load bearing capacity.
- The high-speed flow will provide stable power flow.
- Less wear increases the life of the equipment.
Put simply, a helical gearbox guarantees that your equipment will operate with less vibration, less noise and will be more effective even in severe situations.
The Science Behind Helical Gearbox Working
The knowledge on how a helical gearbox works makes you admire the efficiency and reliability of a helical gearbox.
Step-by-Step Working Process:
- Power Input - The electric motor provides rotating power to the input shaft.
- Gear Engagement - Helical gears are engaged at an angle which enables gradual contact.
- Load Distribution - There are several teeth that distribute the load at the same time.
- Reduction of speed - Gear ratio slows down speed but increases torque.
- Power Output - The controlled mechanical energy is provided by the output shaft.
It is this constant intercourse which is the cause of:
- Reduced vibration
- Lower noise levels
- Higher efficiency
These are the main benefits that ensure that helical gearboxes are the favorites in the industry.
Key Advantages That Make Helical Gearboxes Industry Favorites
Helical gearboxes are widely used because they provide unmatched performance benefits.
- Exceptional Energy Efficiency: The efficiency is as high as 98 percent, and therefore the energy loss is minimal which saves on the cost of operation.
- Silent and Vibration-less operation: The angled teeth design is very silent in nature and thus would fit perfectly in the noisy sensitive environment.
- High Torque Capability: It is applicable in heavy duty tasks that have high load capacity.
- Long Service Life: The wear is decreased, and the loads are evenly distributed promoting durability.
- Small and Portable Construction: It is offered in various architectures to fit in various industrial arrangements.
- Reliable Performance in Harsh Conditions: Can work in dusty, high temperature and heavy load conditions.
Types of Helical Gearboxes for Every Industrial Need
Various industries demand various gearbox set ups. The closer look is as follows:
Inline Helical Gearbox- Small and Space-Saving
Inline helical gearbox consists of inputs and outputs shafts that are aligned resulting in the gearbox being recommended in situations where a high level of space is a critical factor.
Best suited for:
- Conveyor systems
- Packaging machinery
- Automation lines
Parallel Shaft Helical Gearbox- Constructed to be Strong
The gearboxes are of heavy-duty nature and are typically used in heavy-duty operations where a lot of torque is needed.
Applications include:
- Crushers
- Mixers
- Industrial processing equipment
Bevel Helical Gearbox – Right-Angle Power
A bevel helical gearbox consists of helical and bevel gears so that it can transmit power through 90 degrees.
Advantages:
- Space optimization
- High efficiency
- Flexible installation
Helical-Worm Gearbox – Smooth and High Reduction
Integrates helical and worm gear reduction.
Ideal for:
- High reduction ratios application
- Low-speed machinery
Detailed Technical Specifications
Specification can be used to select the appropriate gearbox to use in your application.
|
Parameter
|
Available Options / Range
|
|
Power Range
|
0.5 HP (0.37 kW) to 10 HP (7.5 kW)
|
|
Gear Ratio
|
10:1, 15:1, 20:1, 30:1, 40:1, 50:1, 60:1
|
|
Mounting Type
|
Foot Mounted, Flange Mounted, Foot & Flange, Shaft Mounted
|
|
Gear Type
|
Inline Helical, Parallel Shaft, Bevel Helical, Helical-Worm
|
|
Output Shaft Diameter
|
25 mm, 28 mm, 35 mm, 40 mm, 42 mm, 50 mm, 60 mm
|
What These Specifications Mean for You
- Increased power range = Applicable in bigger machines.
- Gear ratio = Regulates speed and torque output.
- Type: mounting Determines the flexibility of installation.
- Shaft diameter/Impacts: The diameter of the shaft affects load-bearing capacity.
Industrial Applications That Depend on Helical Gearboxes
The application of helical gearboxes is very diverse in the industries because of its versatility and functionality.
- Material Handling Industry: Applied in conveyors, cranes and hoists to have a smooth flow of materials.
- Concrete and construction plants: Process extreme loads in kilns, crushers and rolling mills.
- Food Processing Industry: Provides hygienic and efficient operations in the packaging and processing equipment.
- Automation and Robotics: Offers accuracy and stability of movement.
- Mining and Construction: Applied in equipment that is heavy-duty such as crushers and excavators.
How to Choose the Right Helical Gearbox
The correct selection of gearbox can have a strong effect on your working efficiency.
- Understand Load Requirements: Assess the load that your machinery will be required to work with.
- Choose the appropriate Gear Ratio: The higher the ratios the greater the torque and the lower the speed.
- Consider Installation Space: Select layout-based inline or bevel.
- Check Environmental Conditions: Make sure that the gear box has the capability to withstand temperature, dust and moisture.
- Focus on Efficiency: Improved efficiency minimizes the energy expenses in the long run.
Helical Gearbox vs Other Gear Systems
|
Feature
|
Helical Gearbox
|
Spur Gear
|
Worm Gear
|
|
Efficiency
|
High (90–98%)
|
Moderate
|
Lower
|
|
Noise Level
|
Low
|
High
|
Low
|
|
Load Capacity
|
High
|
Medium
|
High
|
|
Durability
|
Excellent
|
Moderate
|
Good
|
The helical gearboxes are the best in terms of efficiency, durability and performance and hence they are preferred in the contemporary industries.
Reliable Helical Gearbox Dealers in India
As a Reliable Helical Gearbox Dealers in India, we have a good network of dealers which is critical in providing not only products but also a full package to the customers. The dealers appointed by the Altra Power Electrical Industries are installed with technical knowledge which will help them advise a customer on the best gearbox depending on their particular operational requirements. Our dealers know how to make the right decisions as they know the needs of a load to the right configuration suggested.
Dealer Support Includes:
- Professional assistance on the appropriate gearbox.
- Help in the decision of inline or bevel helical gearboxes.
- Installation and alignment recommendations.
- Post sales services and troubleshooting.
- The availability of real spare parts is easy.
This localized support system will guarantee fast response rates, less downtime and efficient operational of the machines thus making the overall customer experience very efficient and hassle free.
Trusted Helical Gearbox Exporters in India
Altra Power Electrical Industries is a Trusted Helical Gearbox Exporters in India, whose products are exported to its clients within the international markets with high-quality products that have been finely tuned to suit their customers. Our export business is aimed at exceeding the global standards that will enable every product to perform the same way in both uses and location. Our value addition will be based on quality, reliability and being punctual in taking and fulfilling orders.
Our Export Strengths:
Supply to various foreign markets.
- Adherence to the international standards of quality and performance.
- Safe transportation by means of secure packaging.
- Effective logistics and documentation services.
- Tailor-made gearbox products according to the client specifications.
We believe in excellence and therefore our global clients would be provided with products that would improve productivity and even meet their operational needs in an effective way.
Why Choose Altra Power Electrical Industries?
It is important to select a proper manufacturer of the gearbox to attain efficiency and reliability in the long run. The Altra Power Electrical Industries integrates knowledge and technology in the industry to provide solutions that conform to the demands of the modern industries. Our primary aim is to offer the products that do not only work effectively but also give value to your operations in terms of durability and consistency.
Our Key Strengths:
- Wide experience in power transmission solutions to industries.
- High quality of materials and precision engineering.
- Huge product line that incorporates inline and bevel helical gearboxes.
- Application requirements customization.
- Competitive prices and high customer service.
Our focus is to provide solutions that would contribute to your business productivity, provide reliability, and contribute to the long-term success of your business.
Maintenance Tips to Maximize Gearbox Life
The best practices to consider in order to guarantee long-term performance are:
- Regular lubrication checks
- Monitor operating temperature
- Check Abnormal noise or vibration.
- Make sure that there is correct alignment in the installation process.
- Schedule periodic maintenance
Get the Best Helical Gearbox for Your Industry!
Altra Power Electrical industries is the right company to meet in India in case you are seeking to locate a manufacturer of quality helical gearboxes. We provide quality consultancy, professional guidance, merchandise, and quality services to ensure that your operations run as usual. Give us a call today to get tailor made solutions and competitive prices to your industrial needs.
