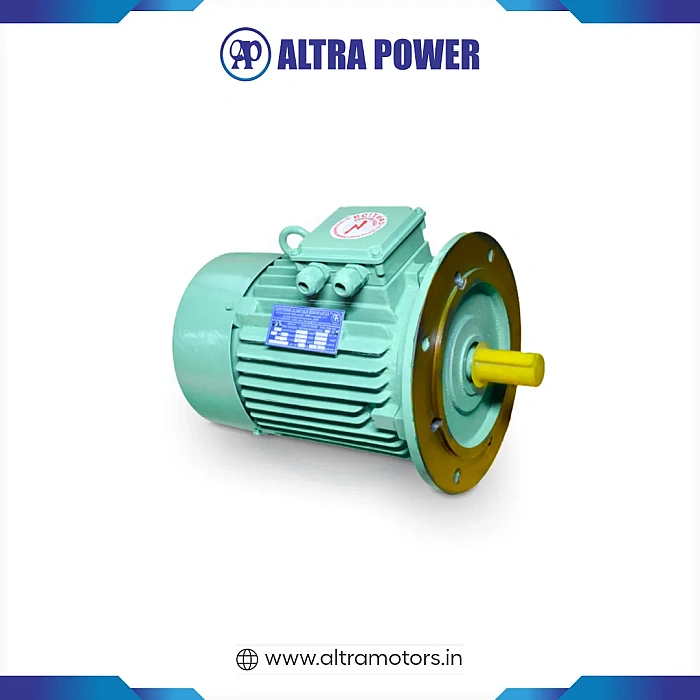

Flange Mounted Motor Manufacturers Since
1993
Flange mounted Motors play a very important role in the industrial machineries of the modern world providing accurate alignment, structural stability and efficient power transfer. Altra Power Electrical Industries is a reputable Flange Mounted Motor Manufacturers in India that manufactures high-quality motors to suit the vast spectrum of industrial applications.
Knowledge of the characteristics, specifications and applications of flange mounted motors is necessary among the engineers, operators in the plant and the industrial purchasing departments who wish to have long term reliability and performance in their operations. The guide gives a detailed review on flange mounted motors, types, technical features, applications and practical advice in choosing the motor.
Leading Flange Mounted Motor Suppliers in India
Altra Power Electrical Industries is a Leading Flange Mounted Motor Suppliers in India, which delivers quality motors that achieve efficiency in industries and have a high level of durability. Our motors are designed to suit various industrial applications such as pumps, conveyors, compressors and processing machines. Our motors are supplied with a keen interest in precision, durability and energy saving, which provide minimum downtime and stable functioning. Collaborating with us will ensure that people will have access to high-tech industrial solutions, knowledge, and service promptly in the whole of India, which will make us the vendor of choice to the industrial purchasers in need of reliable flange mounted motors.
- High-speed motors that are designed to be precise, durable, and energy efficient.
- Very high variety of motor constructions, flange styles and power ratings to meet the needs of the various industries.
- On-time delivery throughout India to create less downtime in operation.
- Professional technical assistance to assist in the correct choice of the motor to use in your application.
- Quality and adherence to industrial standards of reliable operations.
What Makes a Flange Mounted Motor Different?
A flange mounted motor is an electric motor with a circular shaped mounting flange on an end shield or shields. In contrast to conventional foot-mounted motors that are mounted on a base frame, flange mounted motors are designed to be directly mounted on driven equipment (e.g. pumps, compressors, gearboxes, conveyor systems, etc.) with bolts. This mounting system enables the accurate positioning of the shaft, decreases vibrations and forms a small footprint of the installation, which is especially helpful in a limited space industrial setting.
The motor flange serves as a support element and an alignment interface, which makes sure that the equipment connected is able to work effectively with little mechanical load. Electric flange systems, or flange electric motors are often used in industry literature to describe the specialized mounting design and use of flange mounted motors.
Why Industries Prefer Flange Mounted Motors
Flange mounted motors are popular in industries due to a number of reasons. This is because the exact alignment of the equipment makes it run efficiently with minimum vibration thus minimizing wear and lengthening life of the motor. The small size occupies less space that is important in crowded industrial systems. There is also ease in maintenance since any motor may be unbolted easily and replaced without interfering with the other machine around it. Flange mounted motors are also very rigid, and hence can be applied in heavy-duty conditions. These motors are highly favored in the manufacturing, chemical, pharmaceutical, and material-handling sectors because they are versatile in the types of mounts and power ratings.
Key Advantages of Flange Mounted Motors
Flange mounted motors have a number of advantages over the traditional foot-mounted motors:
- Precision Alignment: The flange makes sure that the motor is centered and aligned with the driven equipment to minimize the possibility of misalignment and vibration.
- Space Efficiency: Flange motors occupy a small area hence they are suitable in space-constrained installations.
- Easy Maintenance: The motors can be serviced or replaced easily by unbolting the flange, without causing much operational interruption.
- High Rigidity: Direct mounting offers a robust, non-vibration connection, which is appropriate to the heavy-duty industrial application.
- Flexibility: It can be used in many different specifications such as pumps, gearboxes and compressors and can be used in various industrial applications.
Reliable Flange Mounted Motor Dealers in India
Altra Power Electrical industries is a Reliable Flange Mounted Motor Dealers in India that provide tailor-made industrial solutions to the special requirements of our customers. Our dealers are professional service providers, who assist industries in making the appropriate choice of motor configuration, type of flange, and power rating to be used. Our dealer network offers a faster accessibility to solutions with a broad selection of motors, their competitive prices, and extensive support. With the selection of our dealership services, industrial operators will receive access to high-quality flange mounted motors with the support of a reputable technical service and high-quality supply throughout India.
Explore the Types of Flange Mounted Motors
It is important to know the types of flange mounted motors so as to identify the appropriate one to use in your industrial application.
- The B5 (Big Flange) motor features a flange diameter bigger than the body of the motor and contains unthreaded holes typically. It is also perfect with heavy-duty equipment when high precision of alignment is necessary.
- The B14 (Small Flange) motor is a motor with a flange diameter of the same size or slightly less than the body of the motor, with threaded holes in its mounting. It fits well in an installation where there is a space constraint.
- The B35 (Combination Flange + Foot) motor is a flexible motor that provides the combination of a large flange with a foot mounting, which is handy in the case of an application that needs flange and base support.
- The V1 (Vertical Flange) motor is used to be installed in a vertical oriented position whereby the shaft of the motor is facing down. It is applied widely in vertical pumps and industrial-specific machinery.
All types of flanges are designed to be reliable, simple to install and perform their functions efficiently, and it is necessary to select the appropriate configuration depending on the equipment requirements and the available space to install.
Technical Specifications of Flange Mounted Motors
The technical specification of the flange mounted motor plays a major role in the performance and applicability of that motor as the properties of the motor, such as power rating, phase, frame size, motor poles, and rated voltage, are considered to be significant. The table beneath gives a comprehensive description of the specifications of our line of flange mounted motors, and detailed explanation of their applicability in industry:
|
Specification
|
Options
|
Description
|
|
Power Rating
|
0.25 kW, 0.37 kW, 0.55 kW, 0.75 kW, 1.1 kW, 1.5 kW, 2.2 kW
|
The power rating determines the motor’s ability to drive industrial equipment efficiently. Lower kW ratings are suitable for light-duty applications, while higher ratings are ideal for pumps, compressors, and heavy machinery requiring sustained performance.
|
|
Phase
|
Single Phase, Three Phase
|
Single-phase motors are generally used in smaller installations or light industrial applications. Three-phase motors provide consistent power and are ideal for heavy-duty industrial operations due to higher efficiency and smoother operation.
|
|
Frame Size
|
63, 71, 80, 90, 100, 112, 132
|
The frame size defines the physical dimensions of the motor, including mounting dimensions and shaft size. Selecting the appropriate frame size ensures proper fitment and compatibility with the driven equipment.
|
|
Motor Poles
|
2 Pole, 4 Pole, 6 Pole
|
The number of poles affects the motor speed. 2-pole motors operate at high speeds (~3000 RPM), 4-pole motors at medium speeds (~1500 RPM), and 6-pole motors at lower speeds (~1000 RPM). Choosing the correct pole configuration is critical for matching the operational speed and torque requirements.
|
|
Rated Voltage
|
230 V, 380 V, 400 V, 415 V
|
Rated voltage must match the industrial power supply to ensure optimal motor performance. Voltage compatibility affects efficiency, thermal stability, and longevity of the motor.
|
These standards are necessary to ensure that engineers align the motor to the requirements of the operation, so that the motor will be efficient, reliable and also safe in the industrial operations.
Applications of Flange Mounted Motors
- Pumps fitted to water treatment, chemical processing and industrial cooling systems use flange mounted motors to provide accuracy in alignment and constant operation.
- Gearboxes and reducer in power transmission systems advantage on the inflexible mounting of flange motors, which minimizes vibration and mechanical stress.
- Manufacturing plants also need compressors and blowers with high load motors that can provide a consistent airflow which can be achieved effectively with flange mounted motors.
- Conveyor systems in packaging and material handling industries Conveyor systems with flange mounted motors are reliable, high-speed with minimal maintenance.
- Motors in flange mounting have been used in mixers and grinders as well as processing machinery in chemical, food, and pharmaceutical industries due to their durability, precision and energy efficiency.
Trusted Flange Mounted Motor Exporters in India
Being among one of the trusted Flange Mounted Motor Exporters in India, Altra Power Electrical Industries clients in the global markets are offered the best quality of motors that have an industrial excellence design. Our export motors are of international standard and they are durable, precise, and are energy efficient in various applications. We offer smooth logistics, tailored solutions and technical assistance to assist foreign clients to fit our motors in their equipment effectively. The decision to export with Altra Power Electrical Industries is a sure way to gain access to high performance flange mounted motors, stable supply chain, and unparalleled industry experience to conduct business using global industrial operations.
Choosing the Right Flange Mounted Motor
This decision of the right flange mounted motor is to be taken with regard to a number of factors. The engineers should identify the load requirements of the powered equipment such as torque and power requirements first. The poles are crucial to attain the intended speed of operation; 2-pole motors are normally used in high-speed operations, whereas 6-pole motors are commonly used in heavy-duty and low-speed machinery.
The kind of mounting should be selected depending on the installation pattern. B5 motors are best suited on heavy duty vertical or horizontal equipment and B14 are best suited in small installations. Combination mounts such as B35 provide versatility in the system where both foot and flange mounting can be necessary. Voltage compatibility is required to ensure efficiency and long life of the motors and the frame size should be compatible with the equipment interface to fit in well.
Also, environmental factors, working temperature and the duty cycle should also be evaluated so that the motor can work in the real working conditions without failure. When all these factors are taken into account, an engineer will be able to choose a flange electric motor that will become the most efficient, in terms of both maintenance expenses and the possibility to live longer.
Flange vs Foot Mounted Motors
Flange mounted motors are very different in design, installation and performance as compared to foot-mounted motors. Flange motors are clamped to driven equipment, which offers them a high level of precision and low vibration, whereas foot-mounted motors need a base frame and levelling in place.
Flange motors are also less space consuming in terms of space and can be suitable in small industrial configurations. The flange motors are also easier to maintain since they can be removed without the need to interfere with other equipment, unlike the foot-mounted motors that might need part dismantling of the base. Flange motors are mostly chosen in the cases where high precision, rigidity and space saving is the major priority.
Why Partner With Altra Power Electrical Industries
We are the market leaders in flange mounted motor manufacturers in India; our main focus is to offer high quality motors which are performance, durable and precise. Our products are designed to address various industrial requirements with a high level of construction, accuracy of positioning, and efficiency in energy consumption.
Through the collaboration with the Altra Power Electrical industries, industrial operators can enjoy the support of the technical services, personal solutions, and guaranteed timeframes of the deliveries. Our knowledge is such that all motors are international standard and that they work effectively in the most challenging industrial conditions.
Boost Industrial Productivity with Altra Power Flange Motors!
The flange mounted motors are a vital element of the contemporary industrial processes as it provides accuracy, reliability and space-saving installation. When choosing the correct motor, one needs to have proper specifications, types of mounting, usage and operational needs.
At Altra Power Electrical Industries, we provide flange electric motors of high performance, which have a combination of durability, precision and energy efficiency. Our wide product portfolio, technical support, and experience in the industry enable us to be relied upon by industries in India to have a reliable and efficient motor solution.
In order to offer reliable flange mounted motor manufacturers in India, Altra Power Electrical Industries offers quality products, expert consultation, and customized solutions to all businesses in need of efficient power to operate their industries.
